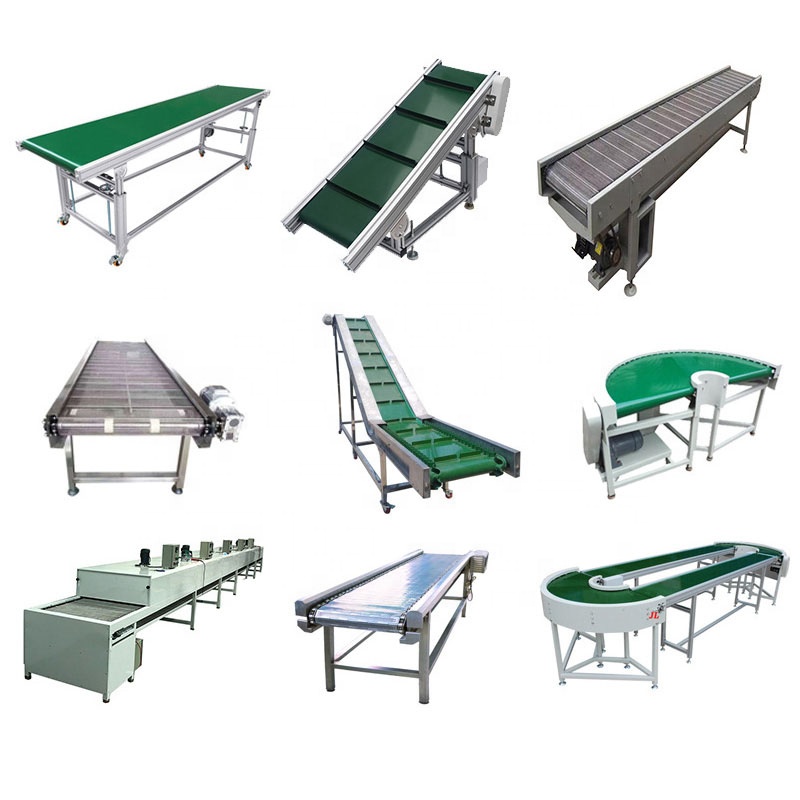

What is a Belt Conveyor?
A belt conveyor is a mechanical system designed to transport materials, goods, or even people from one location to another efficiently.
Unlike other conveying methods that rely on chains, spirals, or hydraulics, belt conveyors use a continuous loop of flexible material—commonly rubber or polymer—stretched between rotating rollers and driven by an electric motor.
The choice of belt material depends on the type and nature of the items being conveyed. Different applications require belts with specific properties, such as strength, flexibility, or resistance to abrasion and temperature, making belt conveyors highly adaptable across various industries.

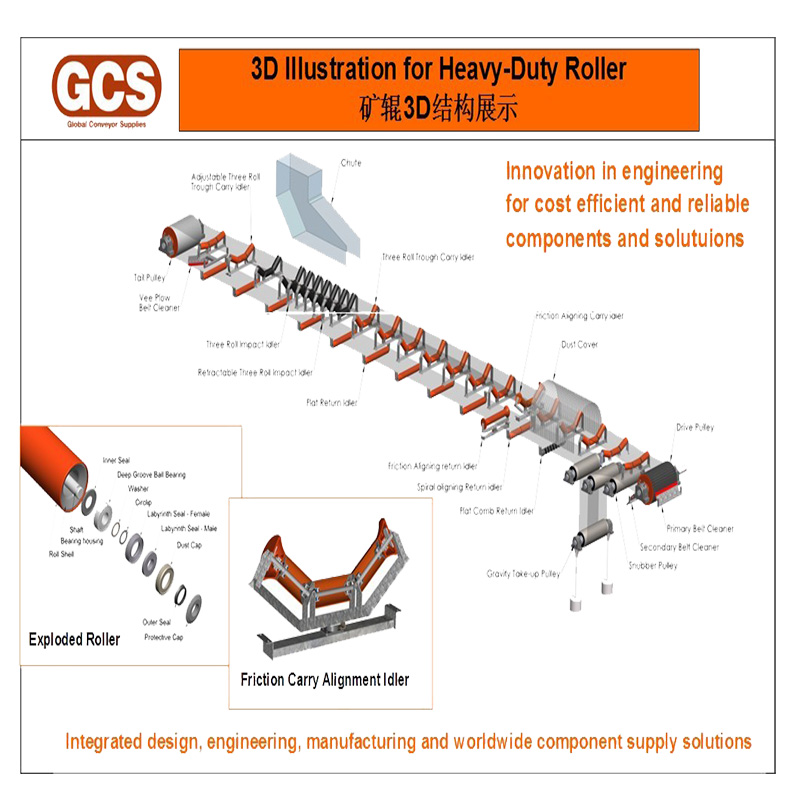

A typical belt conveyor system has a frame
◆ Tail Pulleys
◆ Troughing Idler
◆ Rubber Disc Idler
◆ Screw Idler Roller
◆ Conveyor Belt, and Corrugated Belt.

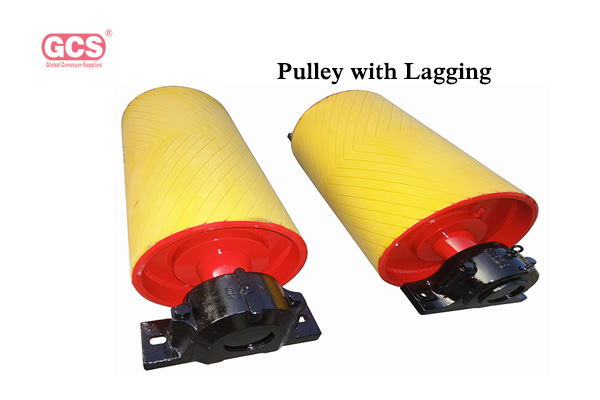

The head pulley is positioned at the discharge end of the conveyor and serves as the main driving component of the system.
Connected to the motor, it transmits power to move the conveyor belt and materials forward.
The surface of the head pulley is often rubber-coated to increase friction and prevent slippage.
The tail pulley is located at the loading end of the conveyor and helps guide the belt’s return path.
It maintains proper belt tension and alignment while supporting smooth movement.

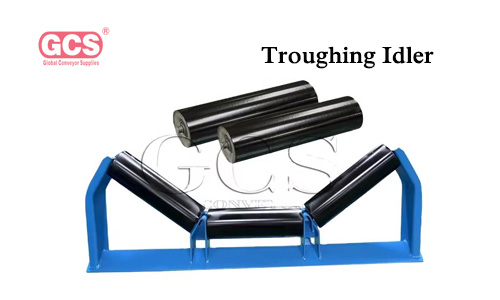

Troughing Idler
A trough idler consists of three or more rollers arranged in a trough shape to support the loaded side of the conveyor belt.
It keeps bulk materials centered, prevents spillage, and helps maintain belt shape.

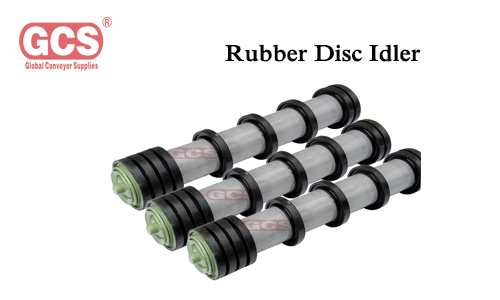

Rubber Disc Idler
The rubber disc idler features spaced rubber rings on the roller surface that absorb impact and prevent material buildup.
It is ideal for use in wet, sticky, or abrasive conditions, such as loading zones or transfer points.
How a Belt Conveyor Works
Here’s a basic walkthrough of how a belt conveyor operates:
1. Material is loaded onto the belt at the starting point.
2. The motor turns the drive pulley, which moves the belt in a continuous loop.
3. The belt carries the material along the rollers, across the frame, to the end point.
4. At the discharge zone the material is unloaded, and the belt loops back via return rollers to the start point.
5. The tensioning system keeps the belt taut and aligned, minimizing slipping or deviation.
Installation, Maintenance & Best Practices
Getting the most from your belt conveyor means proper setup and ongoing care.
Installation checklist: Ensure a level foundation, correct belt alignment, proper tensioning, secure mounting of rollers and pulleys.
Routine maintenance: Regularly inspect rollers and pulleys for wear, check belt tracking and alignment, clean debris from the system, monitor belt tension.
Troubleshooting common issues:
-
Belt slipping or jumping: usually due to low tension or worn drive pulley.
-
Uneven wear or misalignment: check rollers, tracking, frame alignment.
-
Unusual noise or vibration: inspect bearings, rollers, and any loose hardware.

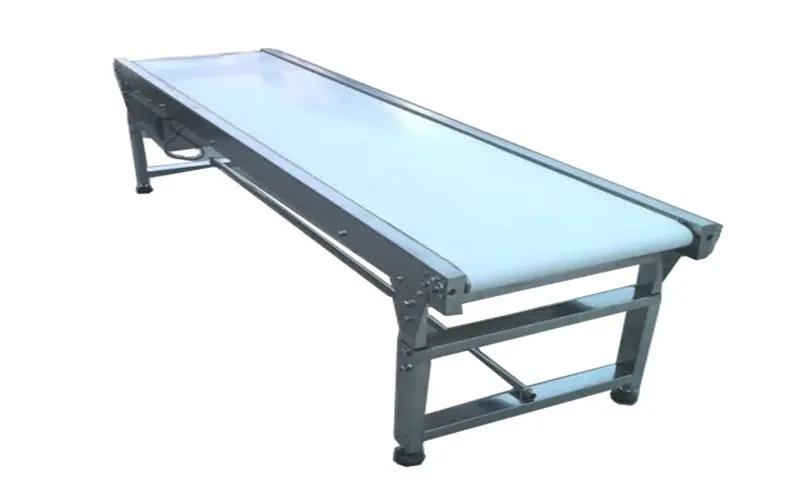

GCS Belt Conveyor – You Can Trust
