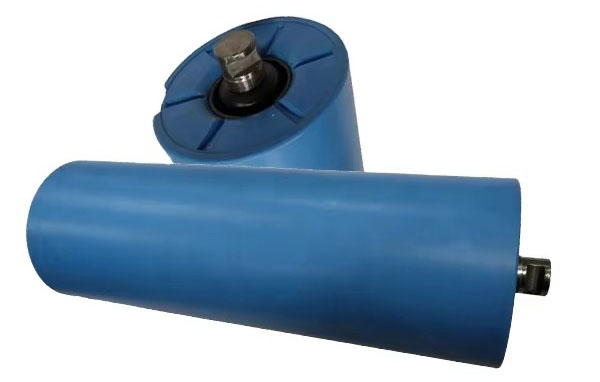

Polyethylene Conveyor Roller

The energy-saving HDPE roller.

.

Ideal for :

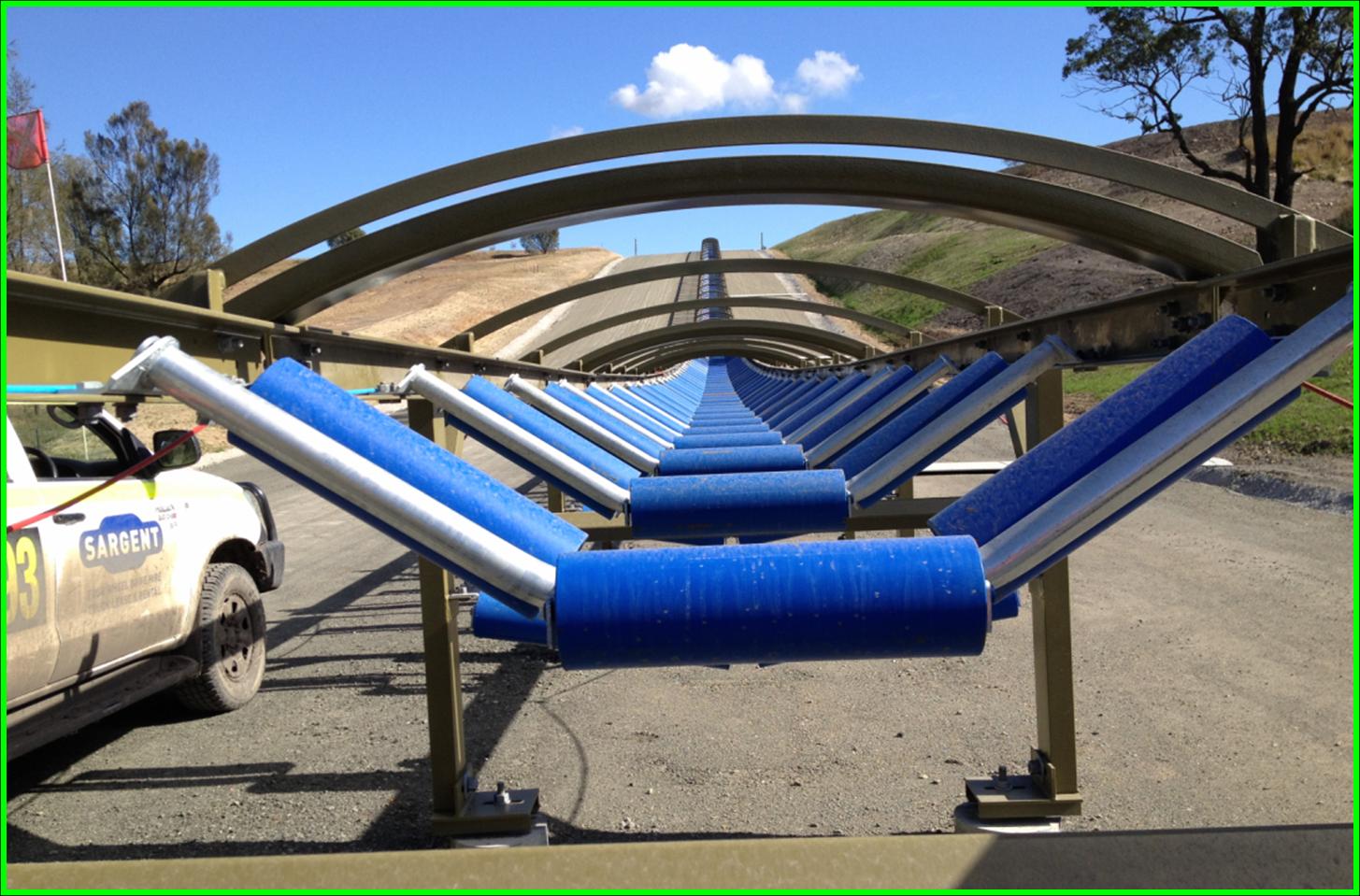

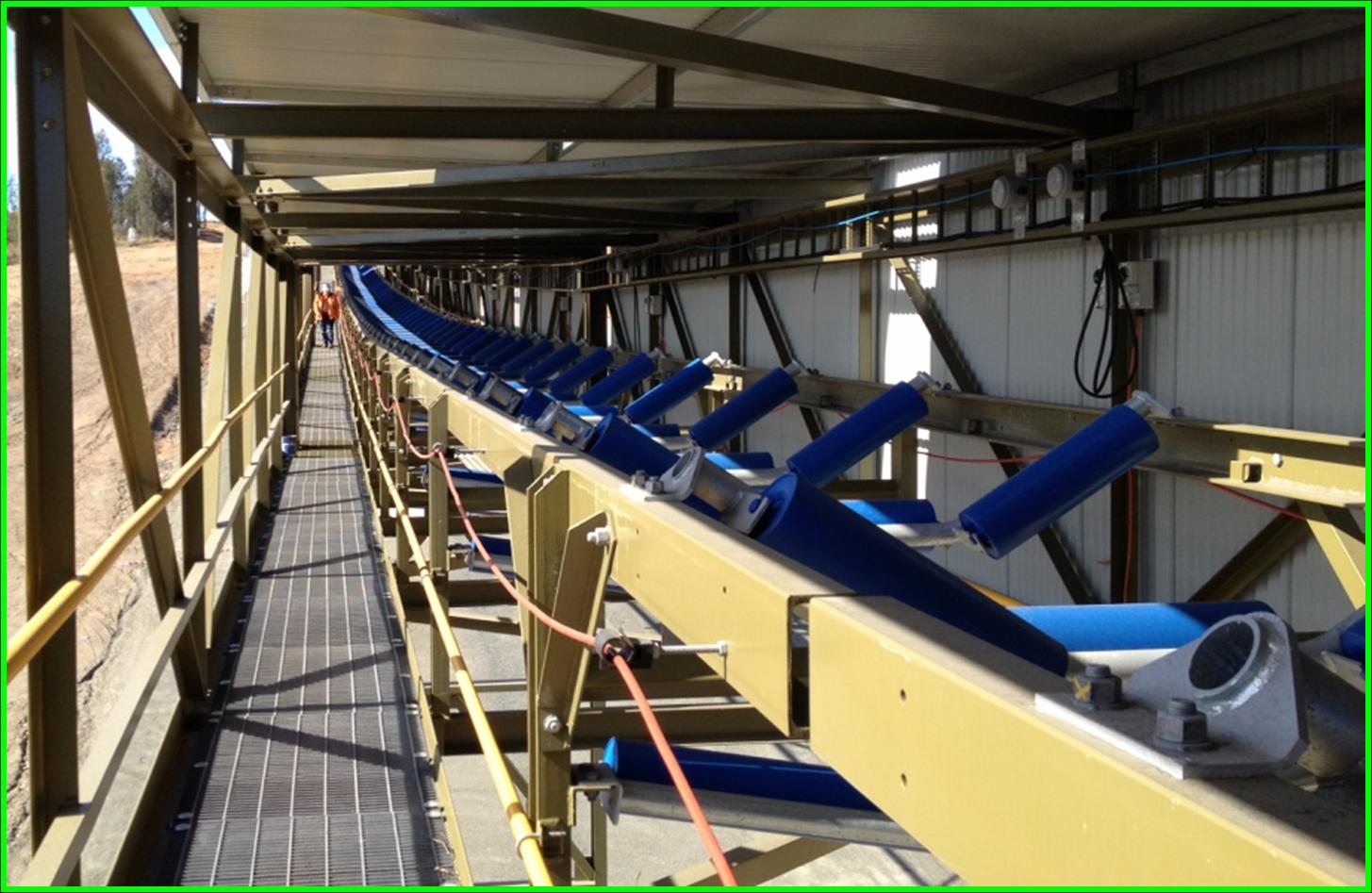

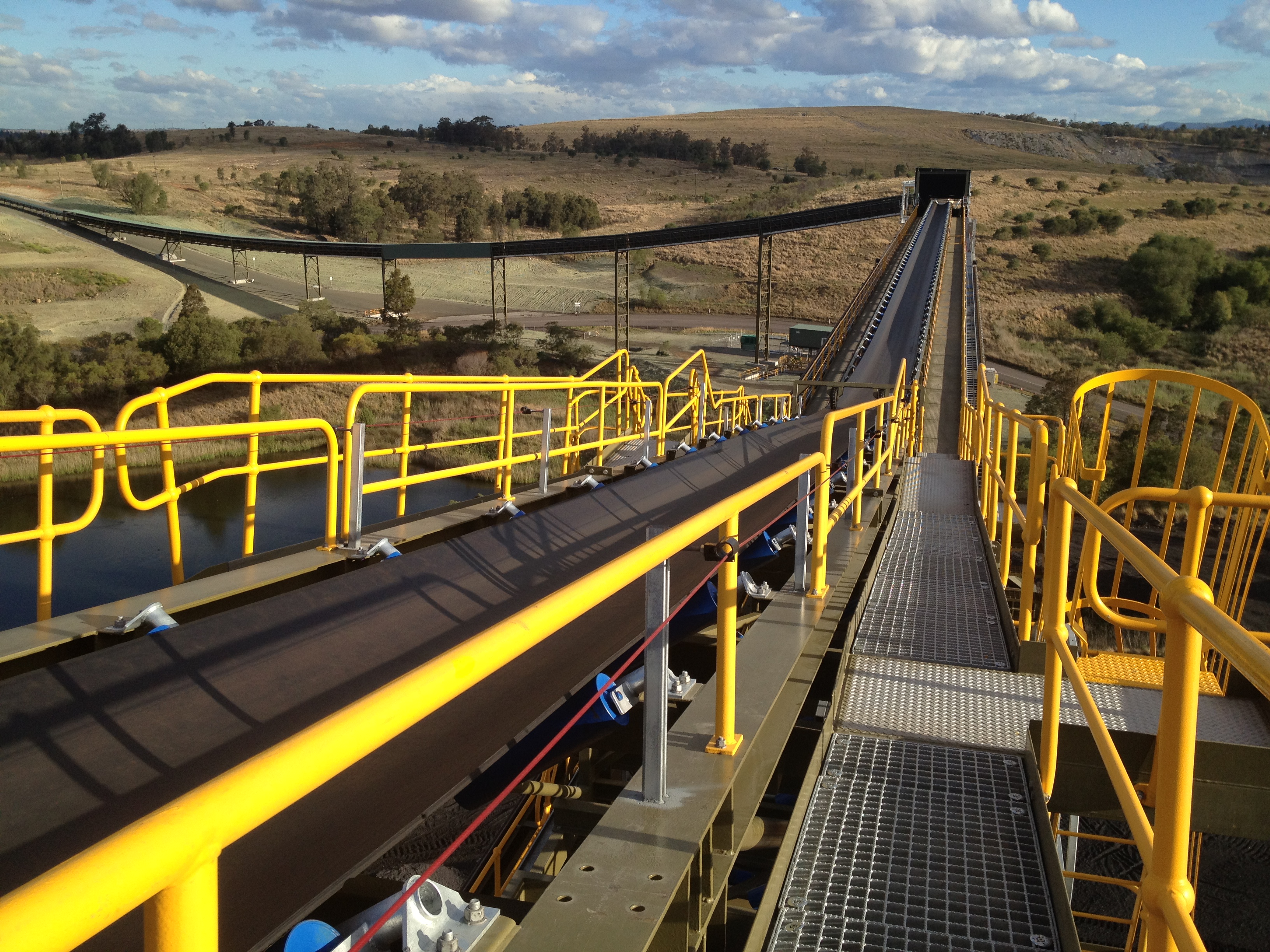

Mining

Food & Beverage

Logistics&Warehousing

Chemical & Marine Environments

New-Generation UHMWPE

Features the roller shell and bearing housing made from UHMWPE engineering plastic with a molecular weight exceeding 3 million (in accordance with ASTM standards).

Due to the self-lubricating and non-stick surface of the GCS UHMWPE roller, materials do not adhere to the roller surface, effectively reducing belt vibration, misalignment, spillage, and wear during conveying operations.

Weighing only 1/3 of steel rollers and featuring a low friction coefficient, UHMWPE rollers are lightweight, energy-saving, and easy to install and maintain.

With exceptional wear and impact resistance, the wear resistance of UHMWPE is 7 times higher than steel, 3 times that of nylon, and 10 times greater than HDPE, earning it the reputation of being the “King of Wear-Resistant Materials.”

The UHMWPE roller also helps to reduce operational noise and vibration, owing to its superior damping properties, making it an environmentally friendly alternative to steel rollers.

Reduced Noise Pollution

Reduce operational noise and vibration, owing to its superior damping properties.

Lightweight&Energy Saving

Weighing only about one-third of a steel roller of the same size and possessing a much lower coefficient of friction.

Wear&Impact Resistance

The wear resistance of UHMWPE is 7 times higher than steel, 3 times that of nylon, and 10 times greater than HDPE.

TAKE A LOOK

Product Specifications & Custom Options

Standard Dimensions:

● Roller diameter: 50–250 mm

● Length: 150–2000 mm

● Shaft options: carbon steel, galvanized steel, or stainless steel

● Bearing type: deep-groove ball bearing, sealed or open

................................................................................................................................

Customization Available:

● Surface finish: smooth, textured, anti-static, or color-coded

● Wall thickness and tube strength according to load class

● Custom materials: HDPE, UHMWPE, modified polyethylene with UV or anti-static additives

● Mounting options: flanged, bracket, or clamp style

................................................................................................................................

Each roller undergoes precision machining and balance testing to ensure stable, quiet operation and long-term reliability.

WANT MORE INFORMATION ON OUR PRODUCTS?

◆ Installation & Maintenance Tips

Ensure roller alignment to avoid belt deviation.

Regularly inspect for wear, bearing condition, and shaft tightness.

Clean rollers periodically with mild detergent—no oil or solvent needed.

Replace if excessive wear or surface damage is detected.

Following these guidelines ensures reliable, long-term performance and reduces unplanned downtime.

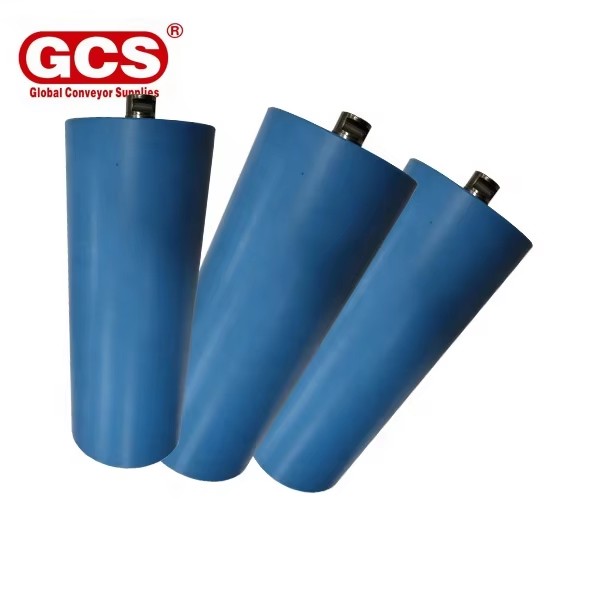

Polyethylene Roller

Belt Width	RKMNS/LS/RS	Bearing C3	D	d	L	L1	L2	a	b
400	LS-89-204-145	6204	89	20	145	155	177	8	14
450	LS-89-204-165	6024	89	20	165	175	197	8	14
500	LS-89-204-200	6204	89	20	200	210	222	8	14
650	LS-89-204-250	6024	89	20	250	260	282	8	14
800	LS-108-204-315	6204	108	20	315	325	247	8	14
1000	LS-108-205-380	6024	108	20	380	390	412	8	14
1200	LS-127-205-465	6205	127	25	465	475	500	11	18
1400	LS-159-306-530	6206	159	30	530	530	555	11	22

Belt Width	RKMNS/LS/RS	Bearing C3	D	d	L	L1	L2	a	b
400	LS-89-204-460	6204	89	20	460	470	482	8	14
450	LS-89-204-510	6204	89	20	510	520	532	8	14
500	LS-89-204-600	6204	89	20	560	570	582	8	14
650	LS-89-204-660	6204	89	20	660	670	682	8	14
800	LS-108-205-950	6205	108	25	950	960	972	8	14
1000	LS-108-205-1150	6205	108	25	1150	1160	1172	8	14
1200	LS-127-205-1400	6205	127	25	1400	1410	1425	11	18
1400	LS-159-306-1600	6306	159	30	1600	1610	1625	11	22

Note: 1> The above rollers are manufactured according to JIS-B8803 to ensure interchangeability.

2> Standard painting color is Black.

FAQs

Q1: What temperature range can polyethylene rollers operate in?
They work reliably from –60°C to +80°C, suitable for both cold storage and high-temperature environments.

Q2: Are polyethylene rollers food safe?
Yes. Food-grade UHMWPE materials comply with FDA and EU standards.

Q3: How long do Polyethylene Rollers last?
Depending on the application, they typically last 3–5 times longer than metal rollers.

Q4: Can I customize the size and bearing type?
Absolutely. GCS supports full customization based on load, speed, and environmental conditions.
