China Wholesale Conveyor Belt Guide Rollers
With decades of industry experience, GCS serves global clients in logistics, mining, manufacturing, and automation. Our focus is on durability, customization, and fast delivery, helping customers build efficient and reliable conveyor systems.
Whether you're upgrading an existing system or building a new one, GCS is here to help with reliable, high-performance conveyor belt guide rollers.

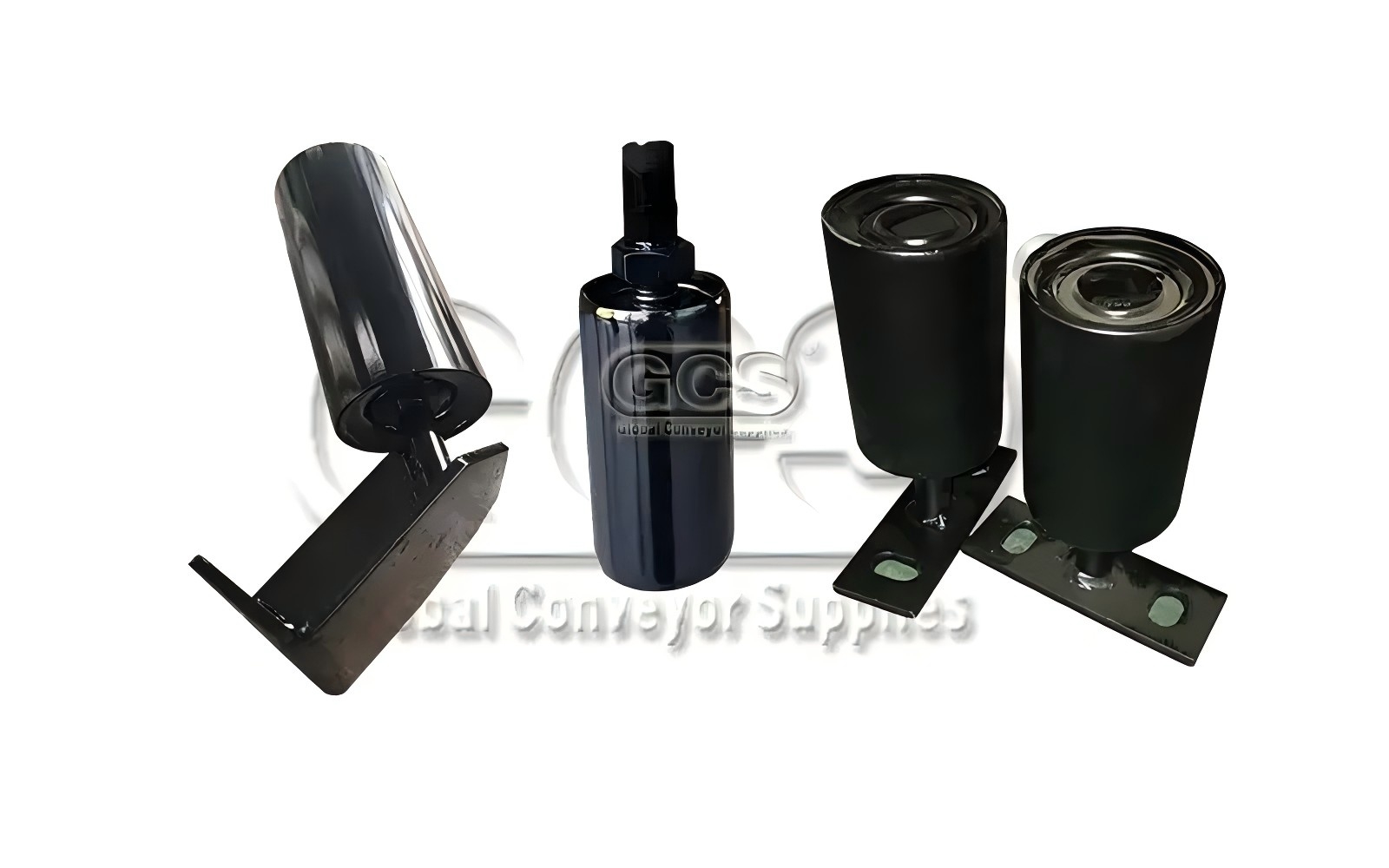

Features of Conveyor Belt Guide Rollers
Our guide rollers use mild steel or hardened steel. These materials are better than nylon, plastic, and rubber. UHMW and hydrogen poly ester products are also more durable alternatives. They offer numerous benefits, including:
■ Prevent the belt from breaking and damaging the conveyor frame
■ Slotted footpads are easy to install and adjust
■ Designed to match existing traditional products on the market.
Want to know how the right guide rollers can improve your conveyor system’s performance? Explore our in-depth guide and discover the types, benefits, and best-fit solutions for your operation.
Specification Diameters
Diameter:φ50，φ60, φ76, φ89
Length: customized
Tube : Q235(GB), Q345(GB), welded with DIN2394 standard
Shaft: A3 and 45# steel(GB)
Bearing: Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
Bearing Housing/Seat: Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard
Lubricating Oil: Grade 2 or 3 long-lasting lithium grease
Welding: Mixed gas shielded arc welding end
Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked pai

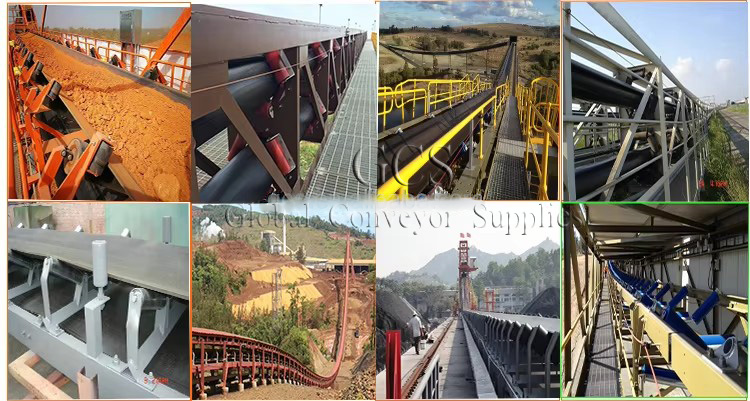

Applications of Conveyor Belt Guide Rollers
Whether moving heavy materials or handling delicate goods, guide rollers help ensure smooth, efficient, and safe operations.
You may commonly see them used in the industry projects below:
● Mining and Aggregate
● Power Factory
● Logistics and Warehousing
● Manufacturing
● Recycling and Waste Management
How to Select the Right Guide Rollers
Belt Width and Thickness: Choose rollers that match the dimensions of your conveyor belt.
Material Type and Weight: Think about the type and weight of materials being moved. This will help you choose the right roller materials and designs.
Operating Environment: When selecting roller materials, consider factors such as temperature, humidity, and exposure to chemicals.
System Layout: Ensure the rollers fit within the spatial constraints of your conveyor system.
Not sure which guide roller fits your system best? Contact our experts—we’ll help you choose the right size, material, and design for your specific application.
Installation Tips
■ Proper Placement: Install guide rollers where the belt may misalign. This includes areas near loading zones or where the direction changes.
■ Regular Inspection: Periodically check the rollers for wear and alignment to maintain optimal performance.
■ Secure Mounting: Ensure rollers are securely mounted to prevent movement during operation.

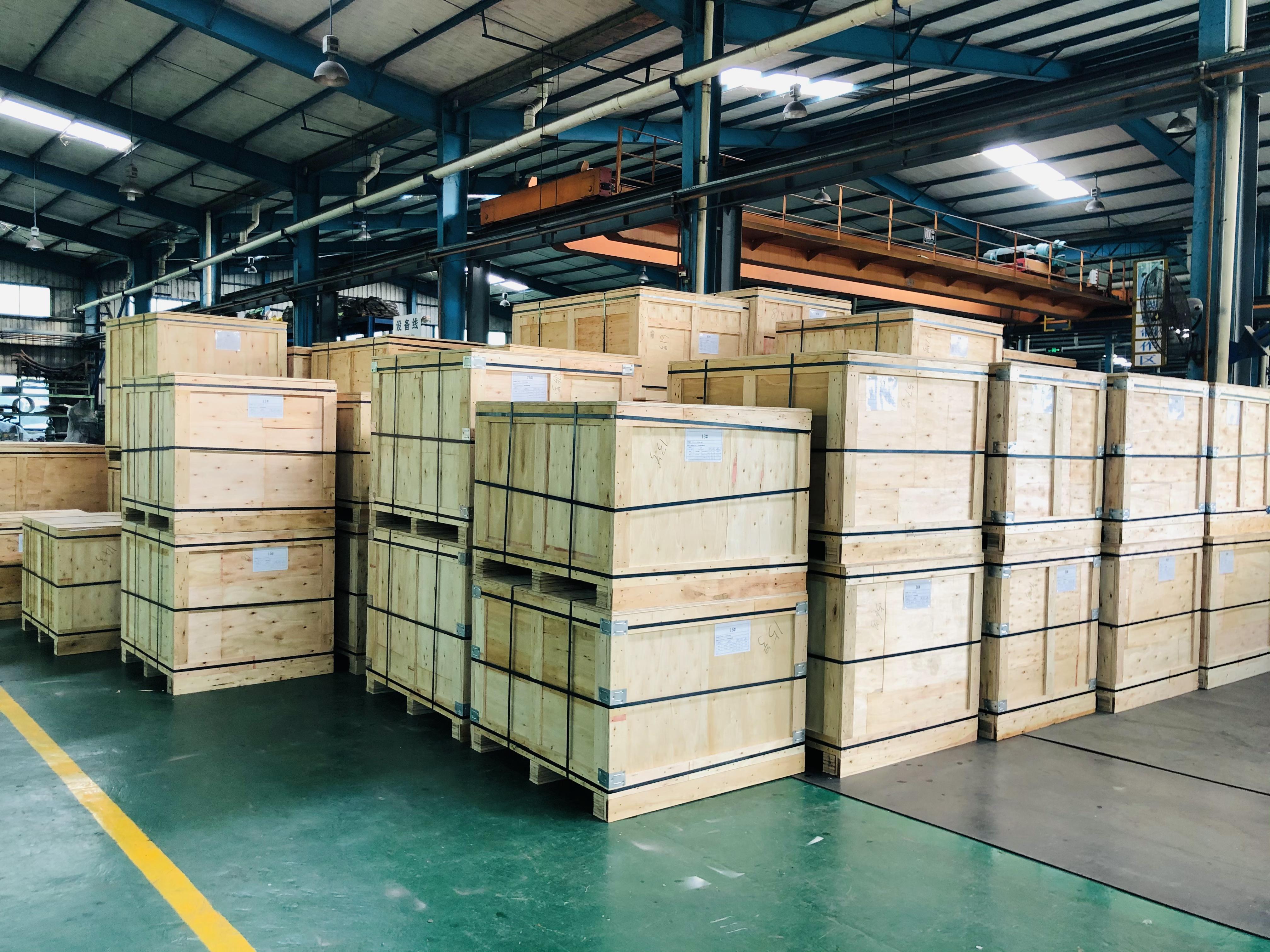

Conveyor Belt Guide Rollers – Fast and Flexible Shipping
At GCS, we prioritize quick dispatch straight from our factory to get your order moving as soon as possible. However, actual delivery times may vary depending on your location.
We offer a range of shipping options to suit your needs, including EXW, CIF, FOB, and more. You can also choose between full-machine packaging or disassembled body packaging. Select the shipping and packaging method that best fits your project requirements and logistics preferences.
Why Choose GCS Conveyor Belt Guide Rollers
Whether you're in mining, port logistics, or industrial automation, GCS delivers reliable components that keep your systems running smoothly.
■ ISO-certified manufacturing standards
■ Quick turnaround times and global delivery
■ Responsive engineering support
■ Proven reliability in over 40 countries
